Quick Details

  • Light Source: LED
  • Item Type: Street Lights
  • LED Light Source: Bridgelux
  • Input Voltage(V): AC100-277V
  • Lamp Power(W): 100
  • Lamp Luminous Flux(lm): 12000
  • Lamp Luminous Efficiency(lm/w): 140
  • CRI (Ra>): 85
  • Color Temperature(CCT): Pure White
  • Working Temperature(℃): -45 - 75
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum Alloy
  • IP Rating: IP65
  • Certification: BV, C-tick, CCC, CE, CQC, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, VDE
  • Warranty(Year): 5
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: OEM
  • Model Number: AOK-120WiL
  • Name: Led Solar Light Outdoor
  • Product name: Solar Street Light
  • Application: Square
  • Power: 40W/80W/120W/160W/200W/240W/280W
  • Item: Street Light Pole Retrofit Led Lighting
  • Keyword: Galvanized Pole Solar Street Light
  • Power Supply: Meanwell LED Driver
  • LED Chip: USA Bridgelux 45mil
  • Solar panel: Monocrystalline Silicon
  • Material: Aluminium Alloy + Steel Glass

Packaging & Delivery

Packaging Details packed in cartons or can be according to customers' requirment
Delivery Time Shipped in 15 days after payment

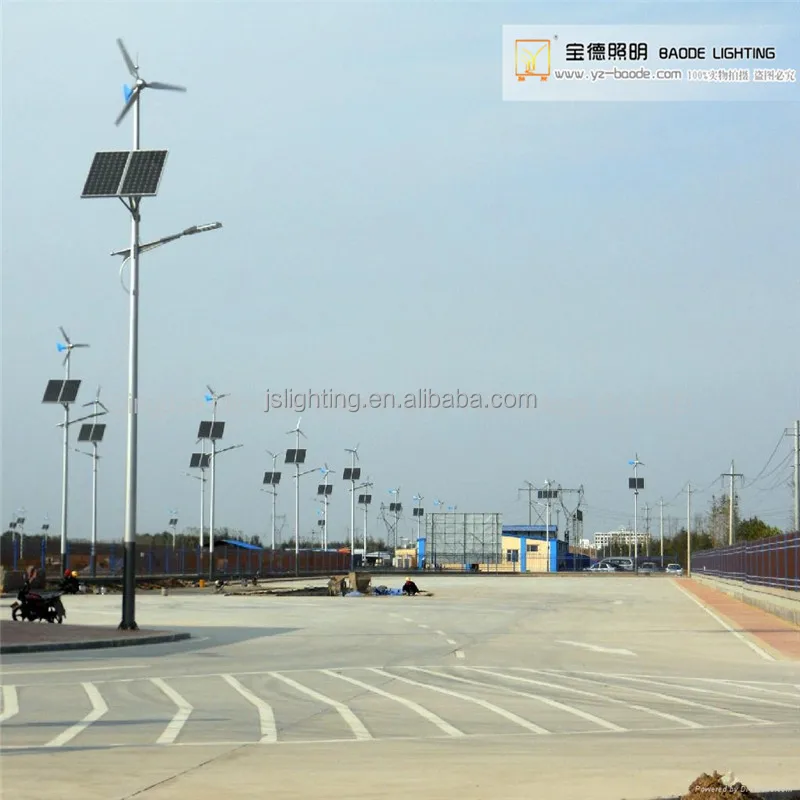

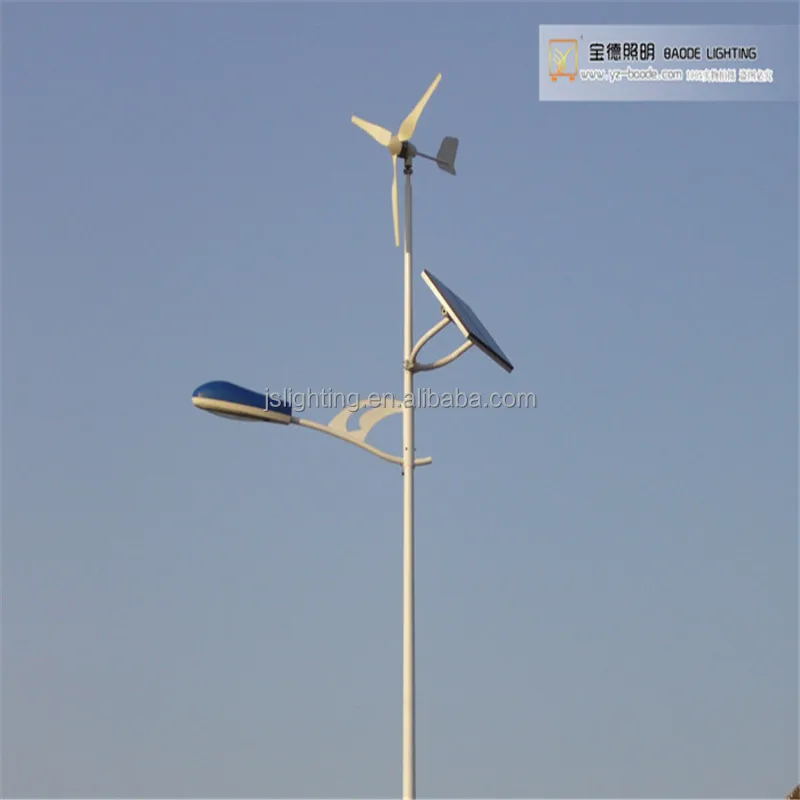

LED Solar Street Light Lamp



Solar Street Light is recycled green energy lighting system, which can be used for residential, road, park and so on.



High quality solar panel absorbs sunlight and convert into electricity energy, then charges maintenance-free battery and finally LED street lights automatically when day off, auto-off when day break.



We make the optimized configuration according to customer's specific requirements and local actual condition (environment, temperature and sunlight duration etc).







Product Description





Specifications



Components

Parameters

Solar Module

Pmax(W)

30-400W

Vmp (V)

35.0V

Imp (A)

2.86A

Light Fixture

Material

Aluminum die casting & Toughened glass

Operating Temperature

-40°C~75°C

Protection Level

IP65

LED Light Source

LED Chip

BRIDGELUX / Cree (Top brand in U.S.A.)

Color Temperature

3800-6500K(white)

Luminous flux

5300 LM

Operating temperature

-40°C~75°C

Current Source

DC 12V/24V

Power

15W/18W/21W/24W/30W/36W/42W/48W/54W/60W

Lighting Pole

Height

3m/ 4m/ 5m/ 6m/ 7m/ 8m/ 9m/ 10m/ 11m/ 12 m

Material

BAOSTEEL GROUP Q235/345/GR60

Surface Treatment

Hot-dip galvanizing, Static spray,

Size

φ60-φ200,δ3-5m, vary according to models

Flange Plate

300*300*16, vary according to models

Battery

Capacity

200AH (100AH*2pcs)

Type

Gel/AGM Battery

Dimension

546*1203*30

Weight

28Kg

Controller

Rated voltage and current

12V/10A or 24V/10A waterproof

Weight

0.165Kg

Two times rainy day backup

&Protective Function

Two times of rainy day backup.

Good protection: overcharging, discharging, voltage surge, reverse polarity, etc.

Accessories

Cable

2.5 mm2, 15m

Battery Box

200AH ABS battery box or metal box with hot-dip galvanizing spray treatment

Foundation Kit

Dismountable foundation kit, saving in shipping



Solar Street Light Details



A GRADE high efficient solar panel

Mono: 18% convert efficiency

Poly:  17% convert efficiency

5 years warranty for solar panels



USA BRAND LED and Aluminum Section Bar Light Fixture

LED: BRIDGELUX/CREE

Long life time: 1W LED with 1 heat sink, fast heat dissipation makes it 100,000 hours long life time



STRONGER POLE with 20 years life time

Larger diameter: our pole is 10% larger in diameters

Thicker wall: we offer 0.25mm thicker pole than that of the market. For example, we offer 3mm thickness for 6m pole, while other, 2.5-2.75mm

Bigger foundation kits: for example, we offer M18-20*1000mm bolts for 6m light, while others, M16-18*800mm

Thicker zinc galvanization and painting: we offer 100 μm zinc and coating than the standard 80 μm



TWO TIMES rainy day backup waterproof controller

Rainy day backup: 2 times more rainy day backup, savings in battery

Combined LED driver and controller as one, easy to maintain

IP67: ideal for high humidity and dust areas

Energy saving mode: THREE periods of power adjustment available

All metal shell: high strength and fast heat dissipation, giving long life time



LISTED GEL battery

Long service life (1600 cycles @ 30% DOD)

Better Weather-ability (-20 ºC ~ 50 ºC)

Fully sealed construction







Applications

Solar Street Light

Solar Road Light

Solar Path Light

Solar Parking Lot Light

Solar Driving way Light

Solar Highway Light

Solar Freeway Light

Solar Avenue Light

Solar Sidewalk Light

Solar Remote Area Light

Solar Military Bases Light

Solar Security Light

Solar Garden Light

Solar Park Light

Solar Gate Light

Solar Grave Light

Solar Entrance Light

Solar Fence Light

Solar Campus Light

Solar Boat Dock Light

Solar Pedestrian Street Light

Solar Jogging and Bike Path Light



Standard Features

- Solar panel: 20 years power generation capacity

- LED light: ultra bright LEDs that last up to 50,000 hours

- Controller: typical operating life of 10 year, auto ON/OFF operation

- Pole: up to 25 years long life time

- Battery: long life of up to 5 years



Certifications









Company Information





We Are Manufacturer

Since 1998, we’ve manufactured solar street light for over 15 years.

Wmanufacture main components from LED source, light fixture, solar panel, pole and even painting powder to control the cost and quality.

We produce solar LED street light from 5W-100W and pole height from 3M-12M

We are capable to produce 10,000 LED solar street lights per month







Our Services





Services



Warranty

BAODE guarantees the purchaser for the period of two (2) years that BAODE’s new lighting systems will be free from defects in materials and workmanship. BAODE will, at its option, repair or replace any BAODE’s system that is defective for a minimum of two (2) years after the date of purchase.



Installation

BAODE offers detailed instructions and videos for installation. Besides, BAODE can provide onsite installation training and technical assistance free of charge in initial period for large projects more than 100 poles because we has developed her experienced technical team.



Spare Parts Policy

BAODE provides 0.5% to 1% of spare parts for free based on the transaction amount.

Transaction amount $1000 ~ $19,999

0.5% spare parts

Transaction amount more than $19,999

1% spare parts



After Sales

Ÿ BAODE will offer technical guidance and repair service for the whole life time of her products.

Ÿ BAODE promises to respond with customer’s questions within 24 working-hours.



Payment terms: 30% in advance and 70% before shipment.

Lead time: 2~3 weeks upon receipt of payment for 50 poles

Shipping: Generally, solar lights are shipped by sea. Battery and pole are not available to ship by air.





Packaging & Shipping



   PackageIndividual package for each component of solar light. Wooden box for LED lamp and solar panel for LCL goods. 80 poles load a 40 HP container for 8M solar street lights and 60-3.5m solar garden lights in a 20 container.
